D313470
Can't find what you're looking for? Go to the Product Selector
直線運動單元, M55-M75 MONT.PLATTA SMSTN.
- Two mounting clamps of version M2 and Mounting plate. Screws to connect the clamps to the plate are included.
- Can be used to mount one unit to another to create a Multi axis assembly

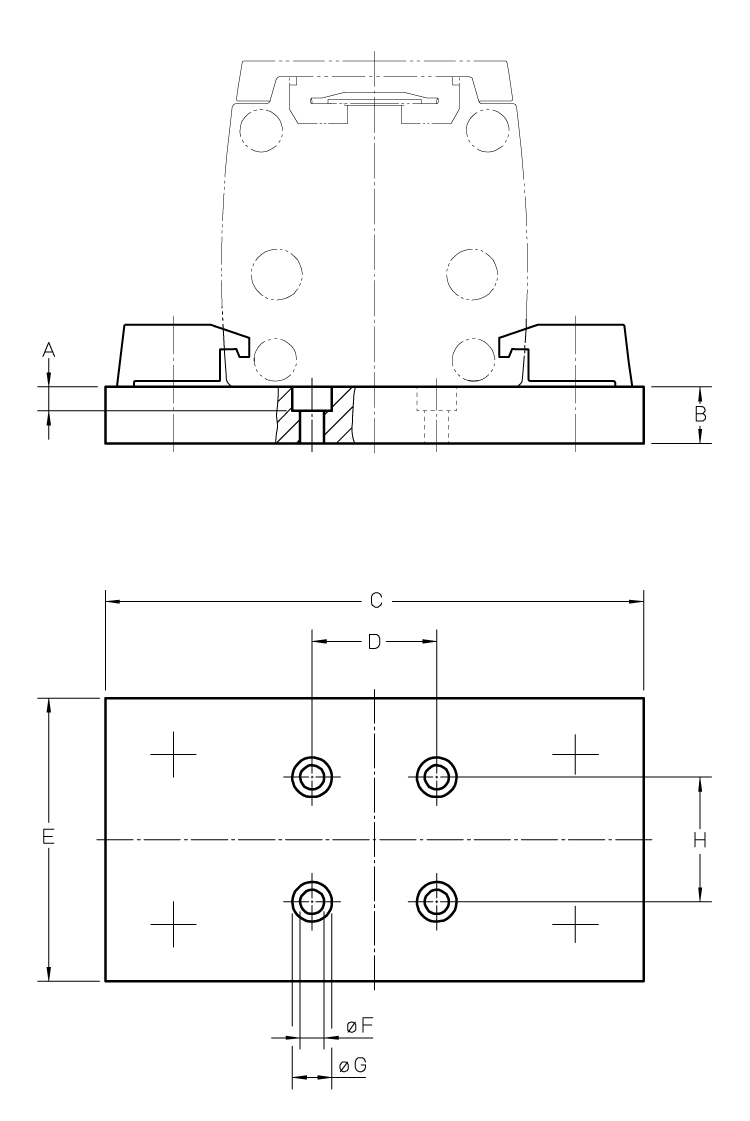

| 尺寸 | 價值 |
|---|---|
| [A] | 5.5 毫米 |
| [B] | 15 毫米 |
| [C] | 134 毫米 |
| [D] | 76 毫米 |
| [E] | 80 毫米 |
| [F] | 5.5 mm |
| [G] | 9.5 毫米 |
| [H] | 41 毫米 |
